Flexible Packaging Rollers
Rollers for Printed, Laminated, and Multilayer Packaging Converting Lines
Flexible packaging lines often require more than just simple film conveyance. When materials include printed layers, adhesive systems, composite structures, or sealing layers, some issues may not appear until later in the process, even if everything seems fine initially.
Wolorin manufactures rollers for flexible packaging lines processing printed films, composite films, and multi-layer structures. We focus on roller positions that need to balance release performance, traction control, heat response, solvent resistance, and rewind stability across the entire conversion process.
Not all rollers on these lines need to be highly customized; some proven solutions can cover similar packaging scenarios. However, long-term suitability still depends on how the roller performs in its specific position on the line.
If post-composite materials start releasing poorly, printed films become unstable at higher speeds, or rewind quality changes, the corresponding roller positions and surface directions should be re-evaluated.
What This Process Handles
Flexible packaging converting works with packaging structures rather than a single plain web. The material moving through the line may already include printed layers, adhesive influence, laminate combinations, surface-treated films, or sealing-layer constructions that respond differently from section to section.
Typical materials and structures include:
- Printed BOPP packaging webs
- BOPET / PET-based laminated packaging structures
- CPP layers used in multilayer packaging builds
- PE sealing-layer structures
- Printed and laminated flexible packaging materials with two or more functional layers
- Packaging webs whose release, traction, and winding response change after lamination or heat exposure
What matters on these lines is not only whether the web can move. It is whether the packaging structure stays stable through printing-related transport, coating or adhesive-related sections, laminating contact, guide sections, and final rewinding without creating release problems, register drift, surface damage, or poor roll formation.
Typical Line Sections and Roller Positions
On flexible packaging lines, roller requirements often shift as the packaging structure moves through different stages of converting. Printed surfaces, adhesive layers, laminated combinations, and sealing-layer behavior can all change how the web responds to roller contact.
Typical roller positions include:
Printing-related transport rollers
Used where web stability affects register control, alignment consistency, and printed-surface handling.
Coating or adhesive-related support rollers
Used where surface condition, chemical suitability, and release behavior become more sensitive once adhesive or coating enters the process.
Laminating nip rollers
Used where contact consistency, pressure behavior, heat compatibility, and release performance directly affect laminated structure quality.
Guide rollers through intermediate sections
Used to keep multilayer packaging materials moving steadily between major process stages without adding unnecessary slip or surface disturbance.

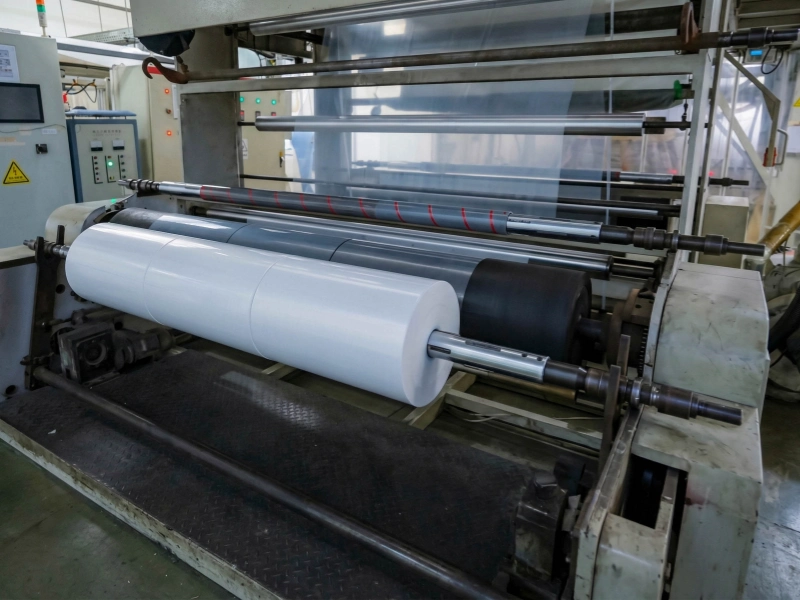

Rewinding contact rollers
Used where laminated and printed structures need to build into a stable final roll without telescoping tendency, loose areas, edge variation, or downstream unwind concerns.
In flexible packaging converting, these positions are connected. A transport issue that seems minor before lamination may later show up as unstable register behavior, reduced release consistency, or a rewind roll that no longer builds the same way after the structure changes.
Common Problems
Flexible packaging converters often see problems only after the structure has already passed several sections of the line. By then, the visible defect may appear at lamination or rewinding, while the roller-related influence started earlier.
Common issues include:
- Printed webs that run less steadily as speed increases, making register-related transport harder to control
- Laminated webs that feel less predictable after bonding, especially when multilayer stiffness, surface response, and traction demand change
- Material sticking, blocking, or releasing poorly in heat-related or adhesive-related sections
- Surface marking, dulling, or drag-related appearance change on printed or laminated structures
- Rewind build that changes after lamination, with tighter zones, softer zones, edge variation, or reduced roll consistency
- Traction that becomes too aggressive for one layer condition but too weak after the structure passes into another stage
- Packaging materials with sealing layers that behave differently in transport and winding than simpler film constructions
In many cases, process settings are not the only factor. Roller surface direction, cover material choice, hardness range, and position-specific contact behavior can all influence how the packaging structure runs through the line.
What These Problems Usually Require from the Roller
When coating or laminating performance becomes unstable, the roller usually needs a better match in several directions.
Flexible packaging roller selection is usually a balance problem rather than a single-property problem. Printed and laminated packaging structures often need a roller surface that can keep the web under control without creating sticking, unstable release, or unnecessary marking.
What these applications usually require includes:
Release vs traction balance
The roller needs enough grip to maintain stable transport, but not so much surface aggression that multilayer webs drag, stick, or lose release consistency.
Stable handling of printed and laminated structures
Printed layers, adhesive influence, and laminated combinations often make the web more sensitive to surface interaction than uncoated single-layer film.
Suitability for heat, solvent, and adhesive-related conditions
Roller behavior can change significantly once the line includes elevated temperature, solvent exposure, or adhesive-contact risk.
Consistent nip behavior in lamination-related positions
Uneven contact can affect laminate uniformity, downstream handling, and final rewind build.
Controlled surface interaction with sealing-layer structures
Packaging materials that include PE or similar sealing layers may show different release, drag, or winding behavior depending on the exact contact point.
Reliable rewind support after structure change
Once the web has been laminated, its winding response may no longer match its pre-lamination behavior. The roller needs to support stable roll formation under the converted structure, not only the incoming film.
In practice, the main question is usually not whether a roller can run at all. It is whether it remains suitable after the structure, surface condition, and winding response have already changed.
Technical Review for Flexible Packaging Rollers
For flexible packaging rollers, basic checks before delivery usually focus on the roller build itself and the actual line requirement.
Typical review points may include:
- packaging structure and layer contact
- printed, laminated, or sealing-layer behavior
- roller position in the line

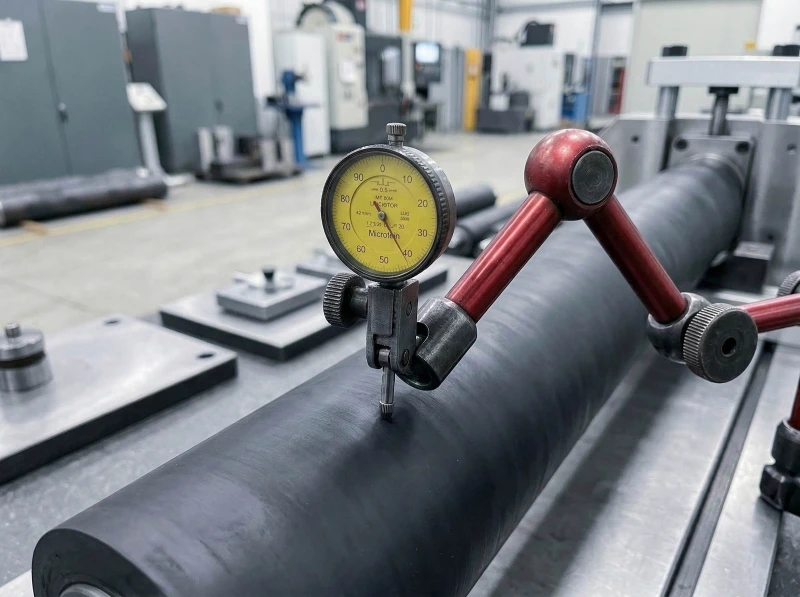

- basic cover hardness and surface finish check
- key dimensions and shaft details
- drawing-based or replacement-based review before production
If you already have a drawing, sample, or existing roller data, you can send it directly for quotation.
Frequently Asked Questions
Laminated flexible packaging lines commonly use transport rollers, laminating nip rollers, guide rollers, and rewinding contact rollers. The correct build depends on the packaging structure, heat and solvent conditions, release behavior, and how the laminated web behaves after bonding.
Poor release usually comes from a combination of surface interaction, adhesive influence, heat, sealing-layer behavior, and roller cover direction. On multilayer packaging structures, the web surface can respond very differently before and after lamination, so the same roller surface may not behave consistently through the whole line.
Printed packaging webs often become less forgiving when speed rises, surface interaction changes, or laminated structure stiffness affects transport behavior. Register-related instability can come from uneven traction, poor surface consistency, or roller positions that no longer suit the converted web condition.
After lamination, the packaging structure often gains a different stiffness, surface response, and winding behavior than the incoming web had before bonding. If roller contact, traction level, or upstream handling consistency do not match that changed structure, the final roll may build unevenly.
Printed layers and sealing layers often make the web more sensitive to marking, drag, release inconsistency, and temperature-related behavior. That means the roller may need a different surface direction, contact behavior, or material selection than a simpler film application would require.
Start with the real line position and the visible problem. Then review the packaging structure, printed-surface condition, adhesive or solvent exposure, temperature, line speed, and rewind result. For flexible packaging converting, roller choice usually depends on how the full packaging structure behaves through the line, not on the base film alone.
Request a Quote
If your line is experiencing unstable laminated film transport, sticking or poor release, transport fluctuations affecting registration, or changes in rewind condition after lamination, you can send us the basic roller and material information for review. If you already have drawings, roller specifications, or an existing solution, you can send them directly and we can quote or produce to your requirements.
